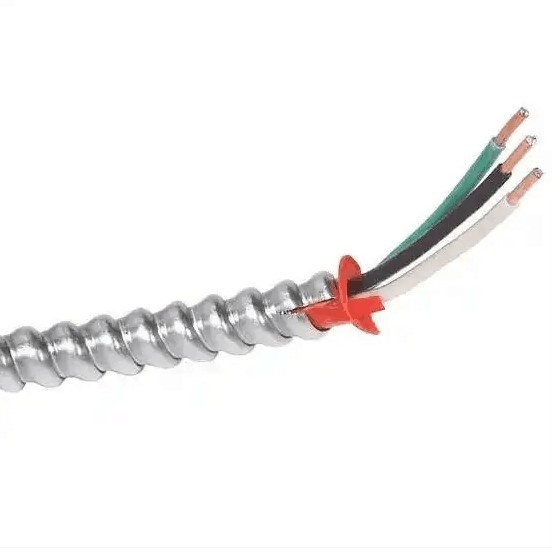

CUL Listed metal clad cable with Aluminum Armored

Description

AC 90 cable is rated for use up to 5000 V, and certified in sizes 14 AWG through 2000 kcmil for copper, and 12 AWG through 2000 kcmil for aluminum, and employs thermoset- or thermoplastic-insulated conductors.

Conductor:
Class B stranded copper
Insulation:
Cross-Linked Polyethylene (XLPE)
Colour Code:
2/C black, white
3/C red, black, blue
4/C red, black, blue, white
5/C cables or more, the insulation is black and numbered
Grounding Conductors
Uninsulated Class B stranded grounding conductor
Assembly
Multiple conductor cables assembled with
suitable fillers and binder tape
Inner Jacket
Polyvinyl Chloride (PVC)
Armour
Aluminum Interlocked Armour (AIA)
Overall Jacket
Black PVC (optional colours available)
Temperature
-40°C to 90°C
Voltage
