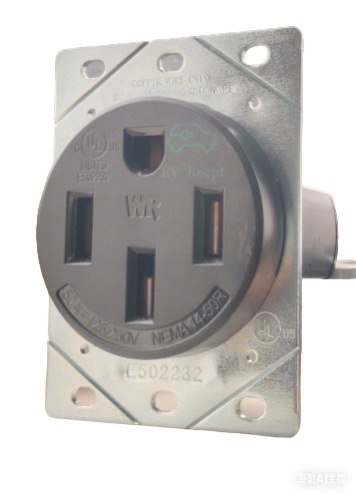

Heavy Duty EV Charging Receptacle, 50 Amp, 125/250V, NEMA 14-50R

Description

Applications
• EV charging: Recommended for use with plug-in electric vehicle charging stations
• Industrial grade for demanding applications

Features & Benefits
• NEMA 14-50R
• Built of durable high impact Nylon
• Pressure-wire terminal connections help to ensure full-contact with the conductors
• Features heavy-gauge, high performance copper contacts
• Accurate, efficient wiring with terminal IDs marked
• High torque value to ensure proper connection: terminals require 75 in lbs., substantially higher than traditional power outlets
• For use with #4, #6 or #8 AWG copper wire ONLY. May use #10 AWG solid copper wire for ground connection. DO NOT use with copper-clad or aluminum wires on this device

Electrical Specifications
• Device: Flush Mounted Single Receptacle
• Type: 3-Pole 4-Wire
• Grounding
• Amperage: 50A
• Voltage: 125/250 VAC
• Temperature Rating: -40°C to 60°C
• Wire Gauges: #4, #6, #8. #10 for ground only
• Grade: Industrial
• Torque: 75 in-lbs.

• Strap Material: Heavy Gauge Galvanized Steel

UL/CUL:E502232
